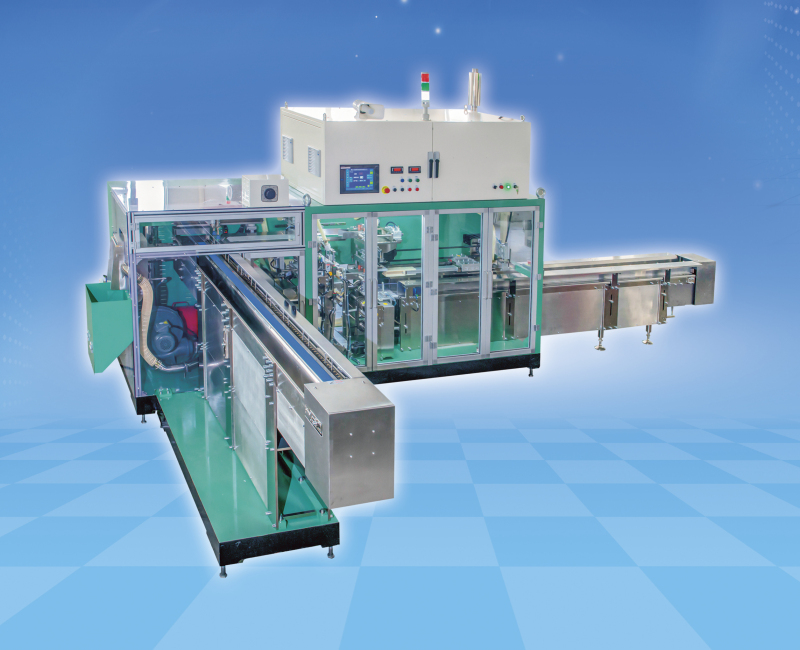

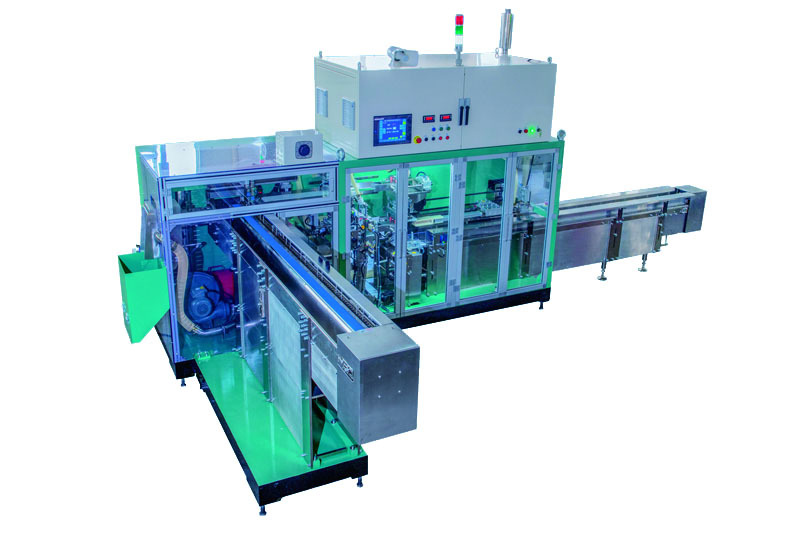

Premade Bag Packaging Machine for Pad and Pantyliner
Why choose GACHN
1.Technology-oriented: GACHN has a technical and R&D team of more than 40 personal
2.Gachn Technology has been used to package more than 60 sanitary napkin brands both in China and internationally.
3.Gachn's sanitary napkin packaging machine have helped the biggest sanitary napkin producer in China capture more than 40% of market share in China.
4.More than 20 years of designing and manufacturing experience in hygienic business.
- GACHN
- CHINA
- 3 MONTHS
- 400 SETS/YERA
- Information
This packaging machine series packages the stacked sanitary napkins and panty liners into premade bags and then seals the bags. The packaging machine is a good choice for customers that wish to use their own packaging bags.
Schematic diagram of the package
Technical parameter
Model: GM-088WY
Working speed: up to 55 bags/min（in relation to the application）
Yield rate: ≥98%
Packing bag type: pre-made bags on wickets
Packing material: PET, composite film (single layer thickness:40~70um)
Packing type: laying,upright
Stacking height: ≤90mm
Machine overall size:L6.3m×W1.5m×H2.0m（in relation to the application）
Weight:: about 2500kg
Installation capacity: about 16KW
Power supply: 3Ph4W（A、B、C、PE), 380V/50Hz
Air supply: 0.6-0.8MPa
Air consumption: ≤300LPM
Special features
Gusset shaping unit ensures product stability and accuracy; gusset overlap deviation is less than 3mm.
Bag opening unit operates with bag package of different specifications, and the changing of specifications can be done by adjusting the parameters.
When the machine running, any doors cannot open, unless press the emergency stop button or blackout, the door can open.
Simple operation, hommization, the important parameters with password protection.
